NAVIRFA®
Simple and Smart, Optical 3D Needle Tracking System
NAVIRFA®
Needle Tracking System
About NAVIRFA®
NAVIRFA® Needle Tracking System is designed to reduce complexity and improve accuracy in needle-based interventions for Simpler, Safer and More-Effective procedures.
NAVIRFA® is a “GPS for Needle” during ultrasonic interventional procedures, providing physicians with a precise and easy way for needle placement. NAVIRFA® uses optical tracking technology to continually monitor the 3D position of the needle tip relative to the ultrasound transducer in real-time.

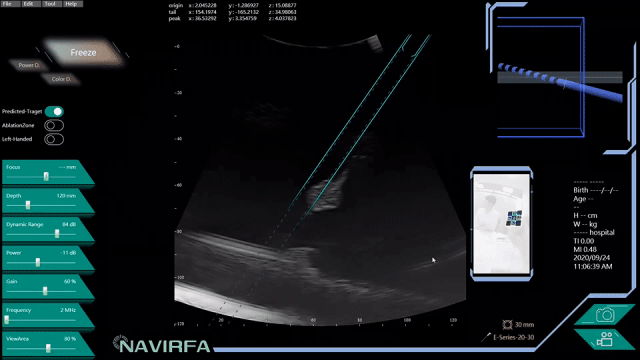

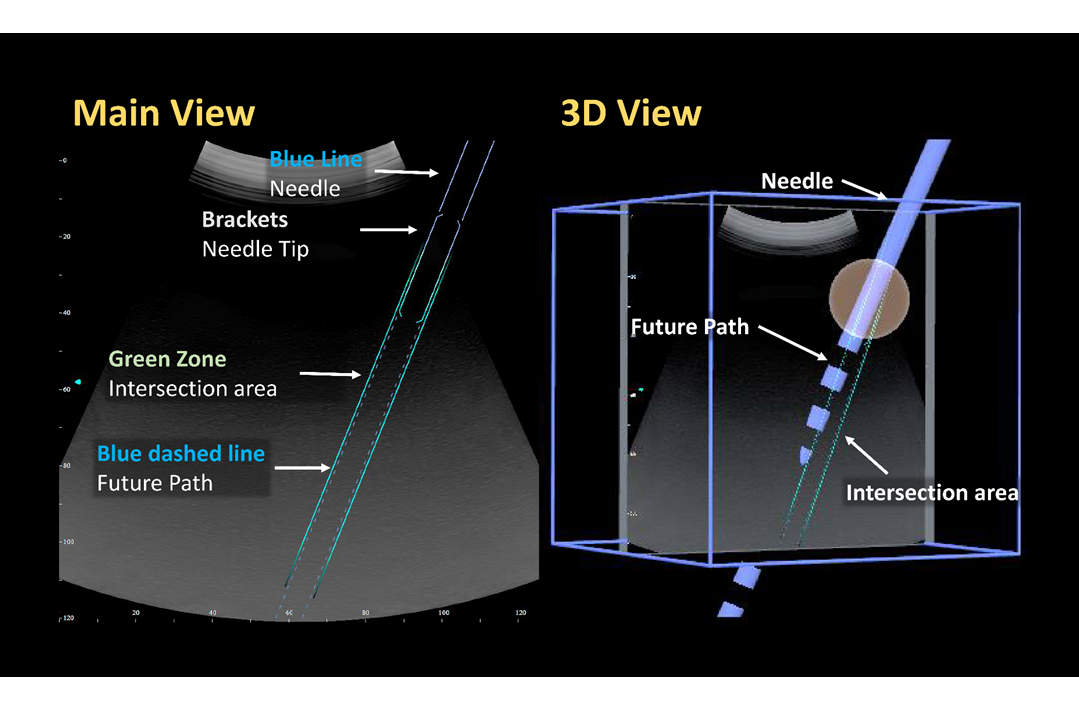

How does it work?
Experimental Result
Improving Surgical Precision
● Tracking Trajectory, needle tip guide, free puncture angle
● Accurate, Needle position
Decrease Complication
● Preservation of normal tissue, nerve or vessel
● Shorter procedure times
Optimize Procedure
● High training efficiency
● Easy to set-up
How System work?
System Configuration
The system consists of the following items：
Tracking Kit + Camera/Optical Sensor + Guidence Software
01

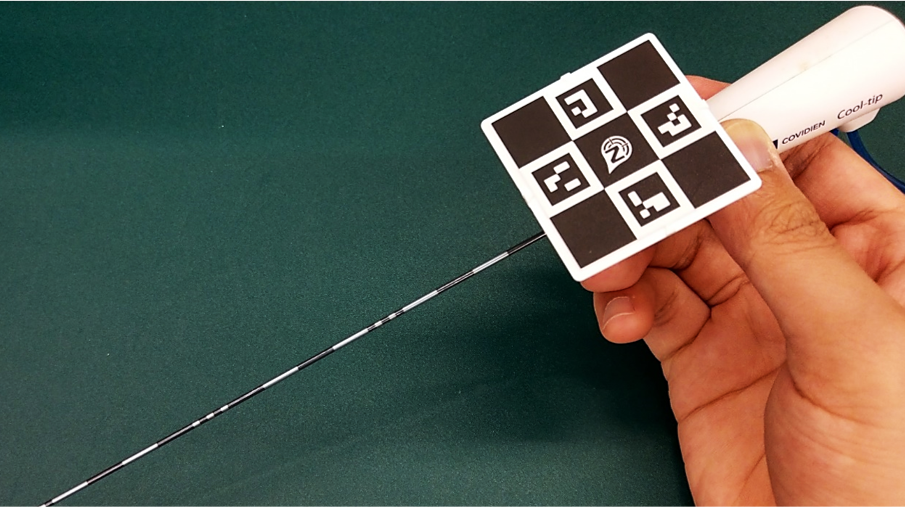

Tracking Kit
Optical marker attached on needle instrument
02

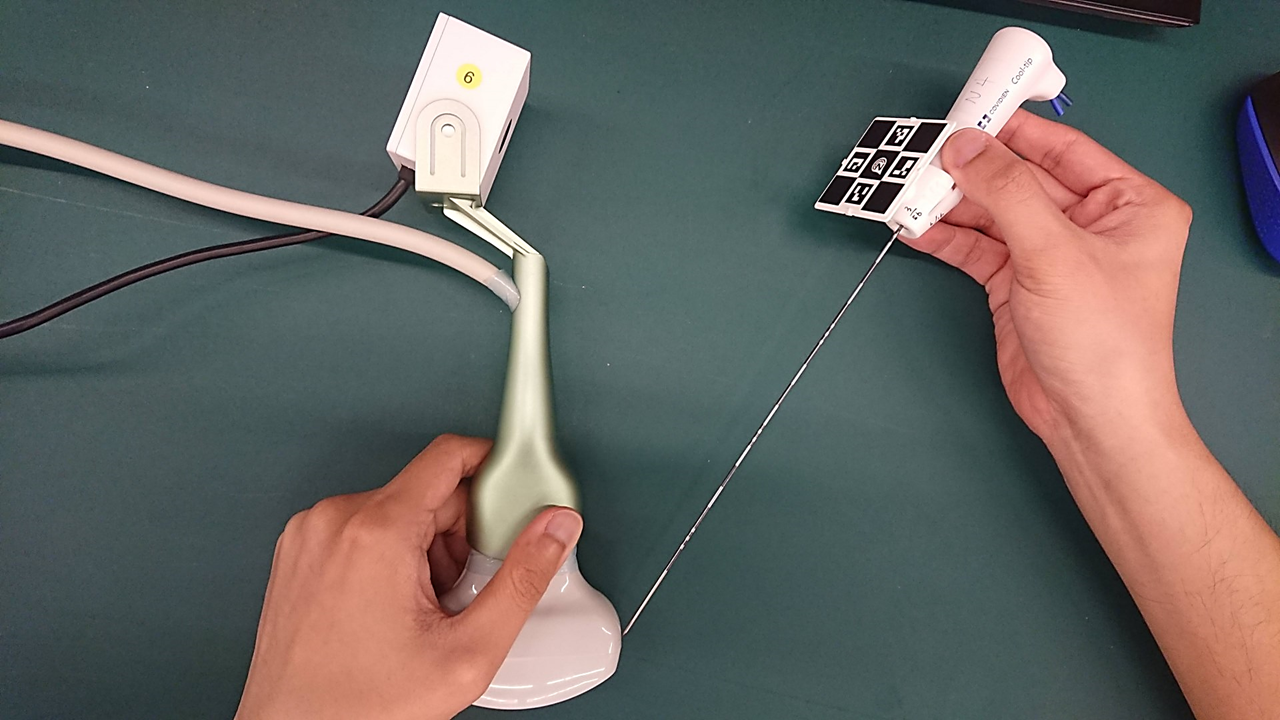

Optical Sensor
Camera fix on the probe and recognize the marker
03

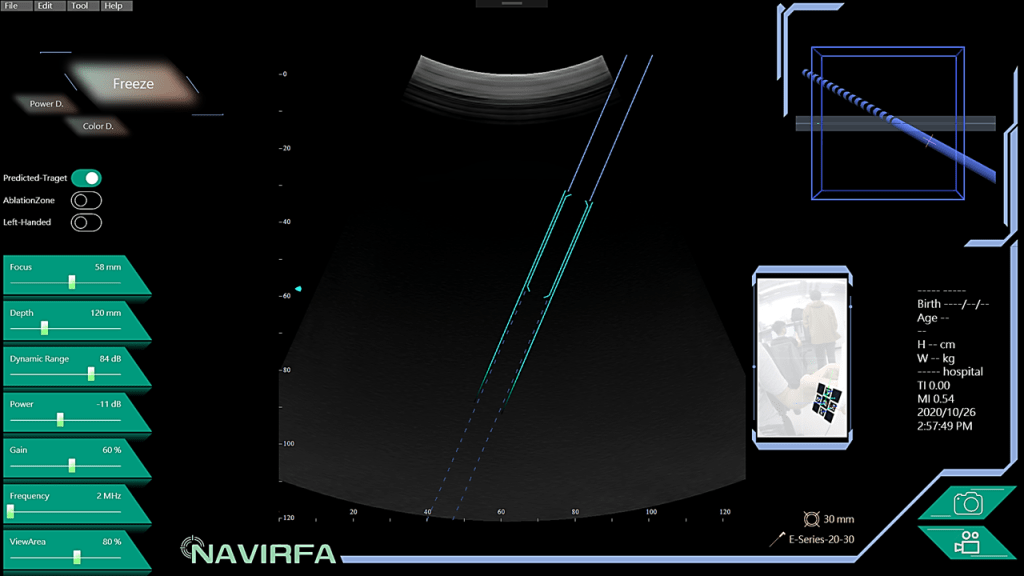

Guidence Software
Position Mapping to real-time ultrasound image
Confidence Outcomes

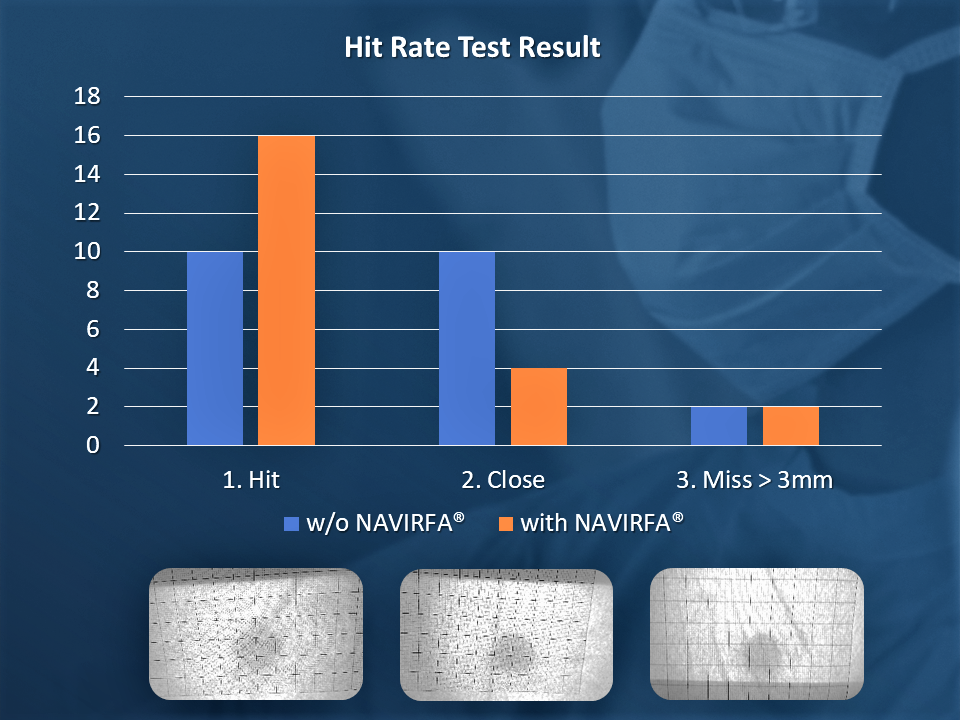

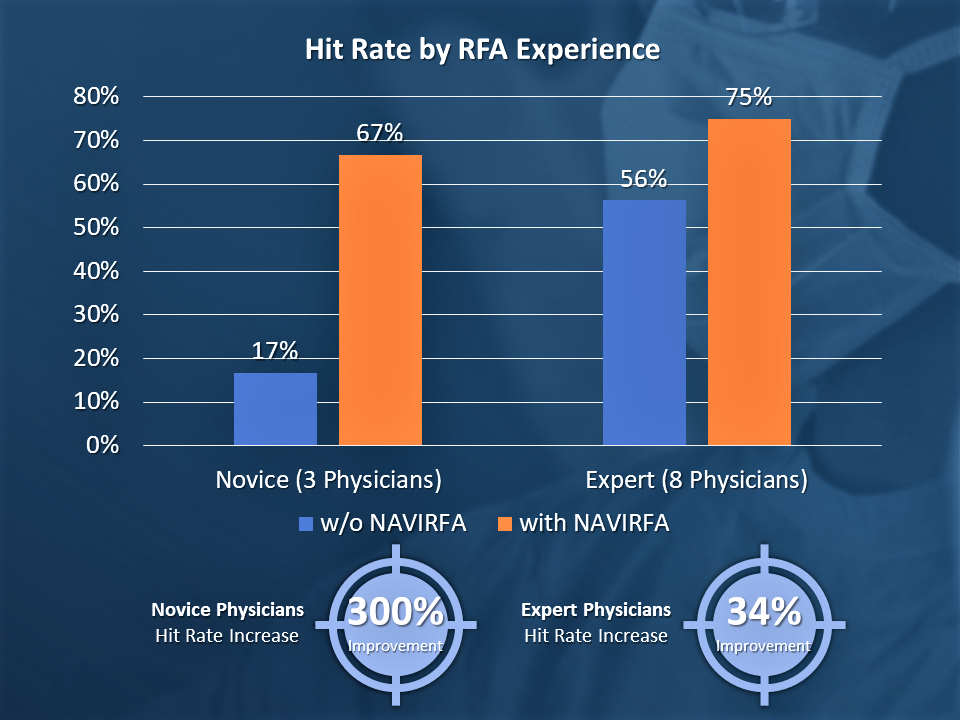

Usability Testing Report
NAVIRFA® Needle Tracking System was tested by 11 physicians on the phantom and comparing their accuracy between using an ultrasound alone and an ultrasound combined with NAVIRFA®. Each user has 4 attempts; 2 times ultrasound alone and 2 times ultrasound with NAVIRFA®.
● High accuracy, error < 3.0 mm
● Increased hit rate by 60%
● Shorten procedure time

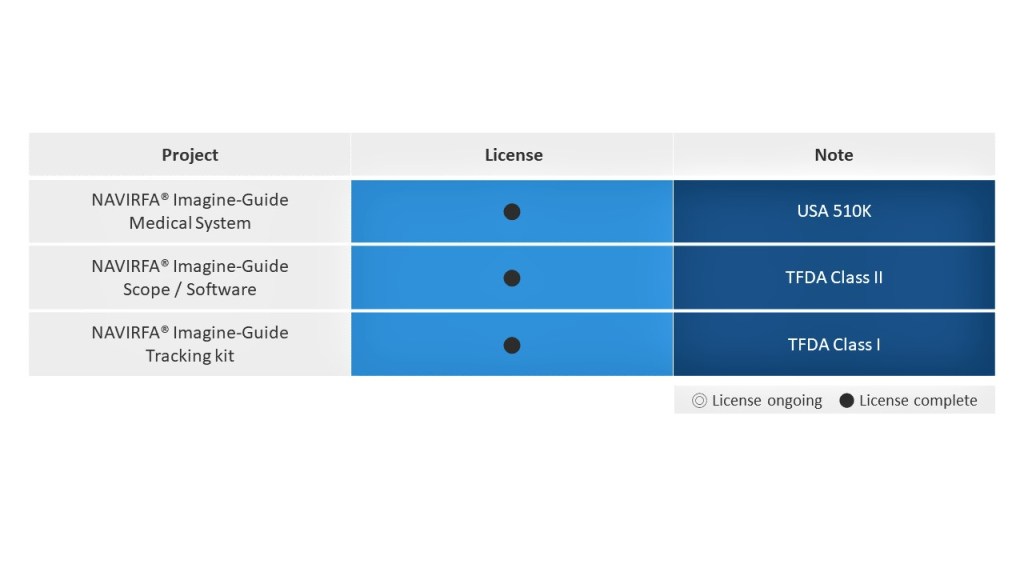

Product Pipeline
NAVIRFA® Guide your Navigation in Medical Solution.
